Heat Sink and Compressed Air Cooler (ace 2, racer 2 S)#
Installing a cooling device is only necessary if your application causes the camera to exceed its maximum operating temperature specified in the "Environmental Requirements" section of your camera model topic. It is suitable for all ace 2 and racer 2 S camera models.
Heat Sinks#
There are two types of heat sinks available:
- Heat sink for Basler ace 2 and racer 2 S cameras
Order number: 2200000998 - Heat sink for Basler ace 2 IP67 cameras
Order number: 2200002639
Each heat sink is delivered with three screws for attaching the heat sink to the corresponding camera.

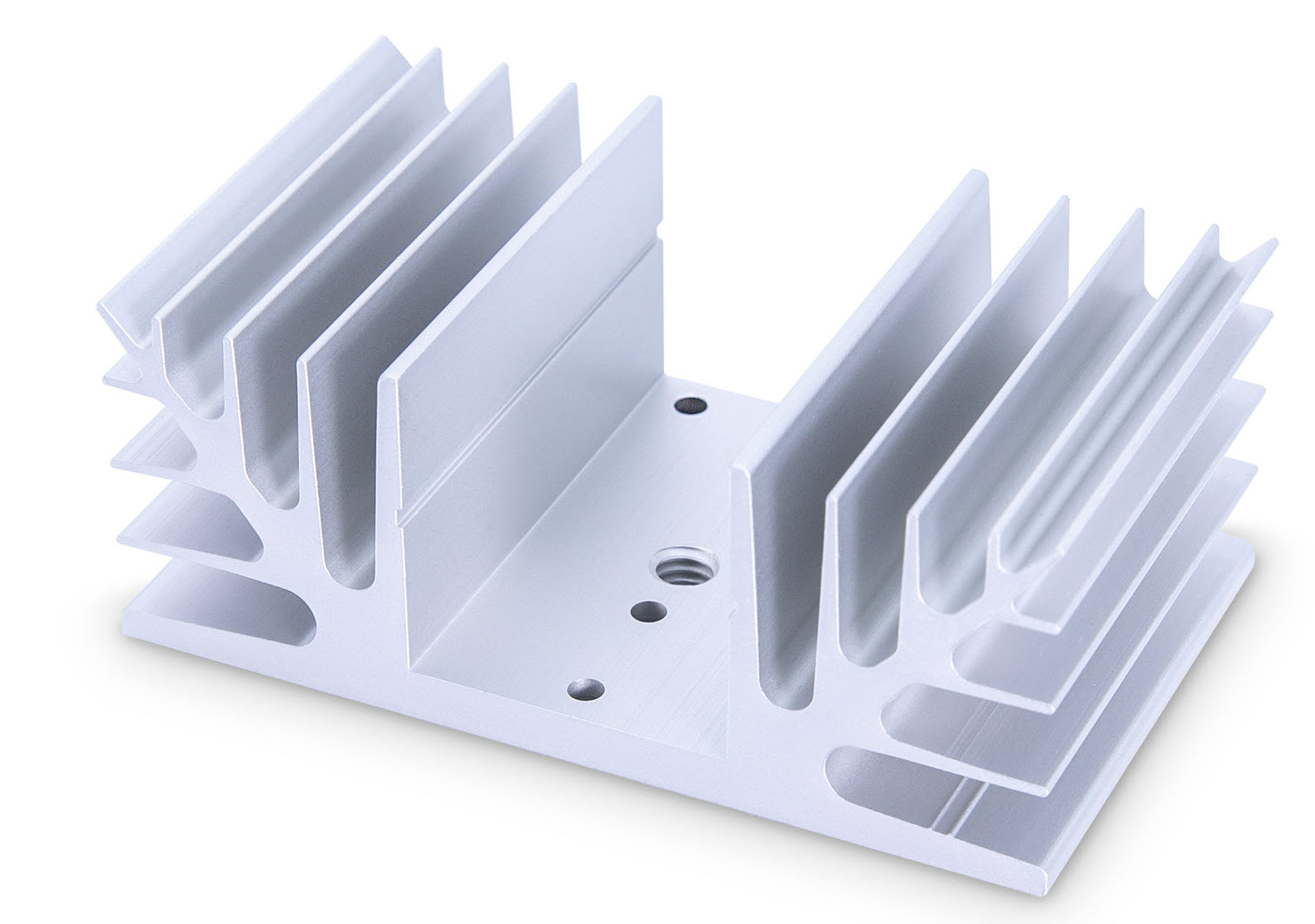

Heat Sink (ace 2, racer 2 S)#
Technical Drawings (ace 2, racer 2 S)#

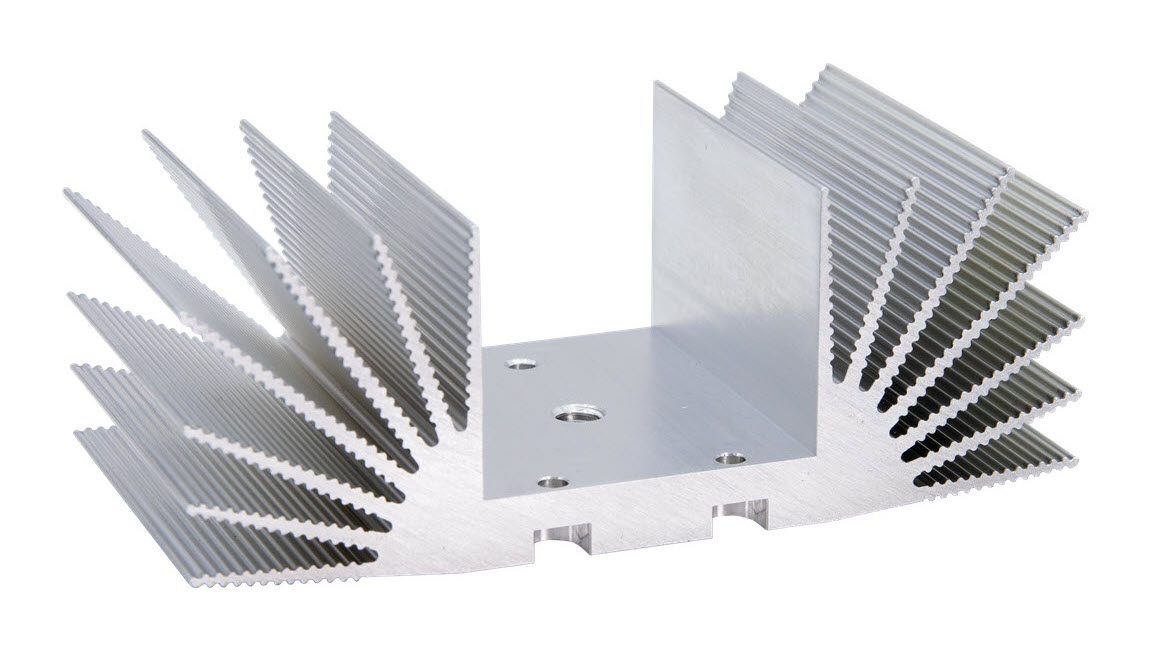

Heat Sink (ace 2 IP67)#
Technical Drawings (ace 2 IP67)#
物理的仕様#
| Heat Sink | For Basler ace 2, racer 2 S Cameras | For Basler ace 2 IP67 Cameras |
|---|---|---|
| 寸法 | Technical Drawingsを参照してください | Technical Drawingsを参照してください |
| 材料 | 透明陽極処理アルミニウム | 透明陽極処理アルミニウム |
| Thermal Resistance | 2.1K/W | 2.4 K/W |
| ネジ | M3 × 5mm、A2 | M3 × 8 mm, A2 |
概要#
| Heat Sink | For Basler ace 2, racer 2 S Cameras | For ace 2 IP67 Cameras |
|---|---|---|
| RoHS適合 | はい | はい |
| 保証 | 3年 | 3年 |

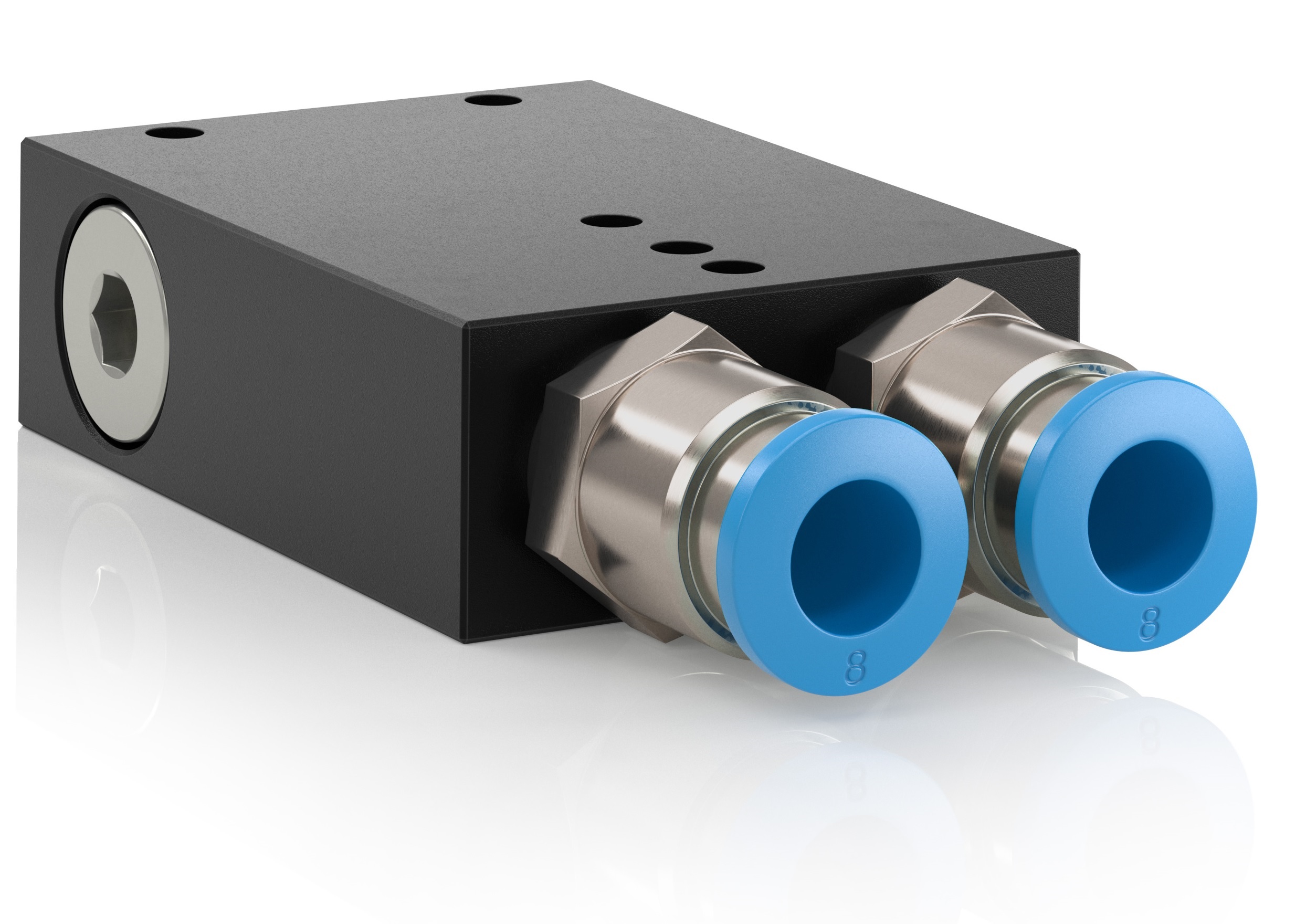

Compressed Air Cooler#
- Order number: 2200002384
- The compressed air cooler is delivered with three screws for attaching it to the camera.
技術図面#
物理的仕様#
| 寸法 | See technical drawing above |
| 材料 | 黒色陽極処理アルミニウム |
| Max. Operating Pressure | 12 bar |
| インターフェース | 2 pneumatic plug-in connections for compressed air hoses (Ø8 mm) 2 connection threads, G 1/8" |
| ネジ | M3 × 16 mm, A2 |
概要#
| 保証 | 3年 |
For more information about your camera, installation, and providing heat dissipation, read the following topics:
- Your Basler ace 2 camera topic
- Your Basler racer 2 S camera topic
- Hardware installation topics for GigE cameras, USB 3.0 cameras, or CXP-12 cameras
- Providing Heat Dissipation topic
