Driver Board 2x2#

The Driver Board 2x2 features convenient screw terminal connectors for various components and offers four driver channels capable of delivering up to 240 W peak light power in total.

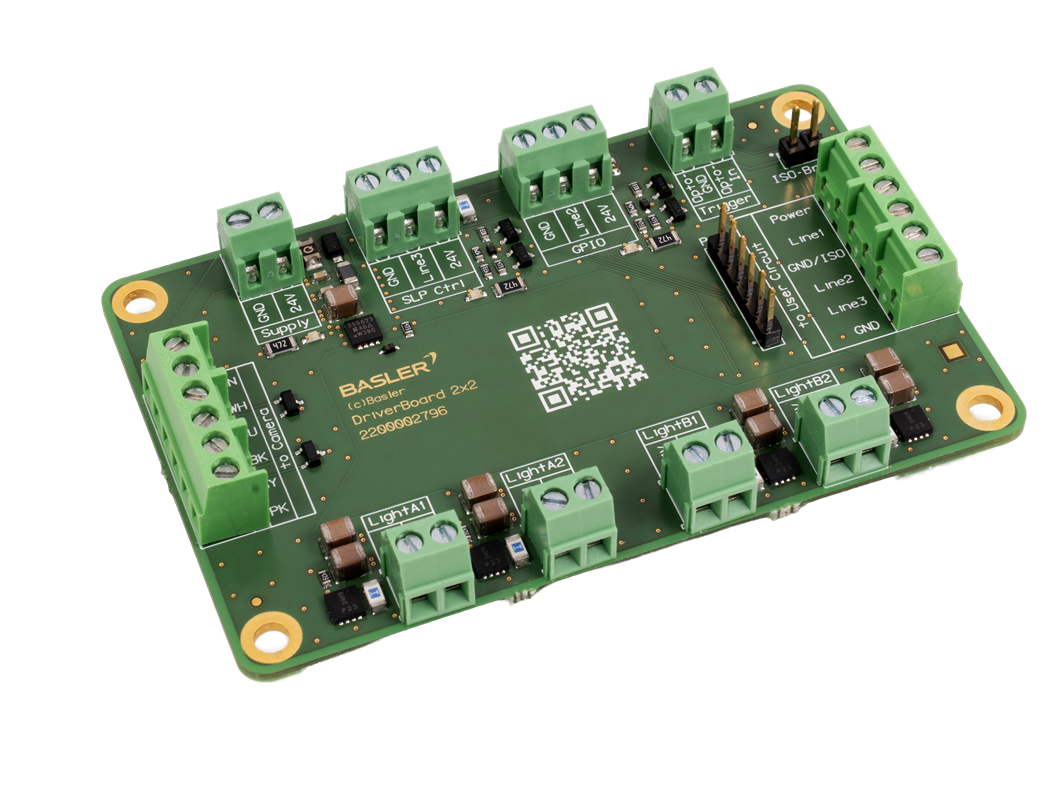

Driver Board 2x2

情報

The Driver Board 2x2 is suitable for the following camera models:

  • ace 2
  • boost R
  • racer 2 S

You can also use other Basler cameras. In that case, observe the circuit diagram shown below.

Driver Board 2x2
注文番号 2200002796

主な機能#

  • Four driver channels with up to 240 W peak light power in total
  • Convenient screw terminal connectors
  • GPIO and opto-coupled input lines

機械的仕様#

サイズ(長さ x 幅 x 高さ) 86 x 54 x 14 mm
重量 34 g

電気仕様#

Input Specifications#

機能 ライン Status Min. Voltage
(VDC)
Max. Voltage
(VDC)
Supply Voltage - - 12a 24
光結合I/O入力ライン ライン1 Low
High
0
2.2
1.1
24
General Purpose I/O (GPIO) Line ライン2 Low
High
0
2
0.8
24
General Purpose I/O (GPIO) Line ライン3 Low
High
0
2
0.8
24

  1. Minimum voltage may vary depending on connected components and load.

回路図#

The following drawing shows the circuit diagram of the Driver Board 2x2.

Driver Board Circuit Diagram

環境仕様#

動作温度 0~55°C(32~131°F)
保管温度 -20~70°C(-4~158°F)
湿度 20–80 % relative, non-condensing

概要#

適合性 CE (includes RoHS), UKCA, FCC, KC
保証 3年

使用事例#

Use Case 1 - Line Status Detection#

Check and detect various states of production lines or conveyor systems using the Driver Board 2x2 with dedicated line sensors.

Use Case 2 - Trigger System#

Use an external trigger source (e.g., light barrier, push button, or PLC) on Line 2 to start image acquisition with the Driver Board 2x2.

Use Case 3 - Simple Light#

Synchronize a light (e.g., 24 V LED panel without internal control) with the camera's exposure via Line 3.
