Fin Heat Sink and Compressed Air Cooler (racer 2 XL)#

The fin heat sink and the compressed air cooler for Basler racer 2 XL cameras provide an efficient way for heat dissipation during camera operation.

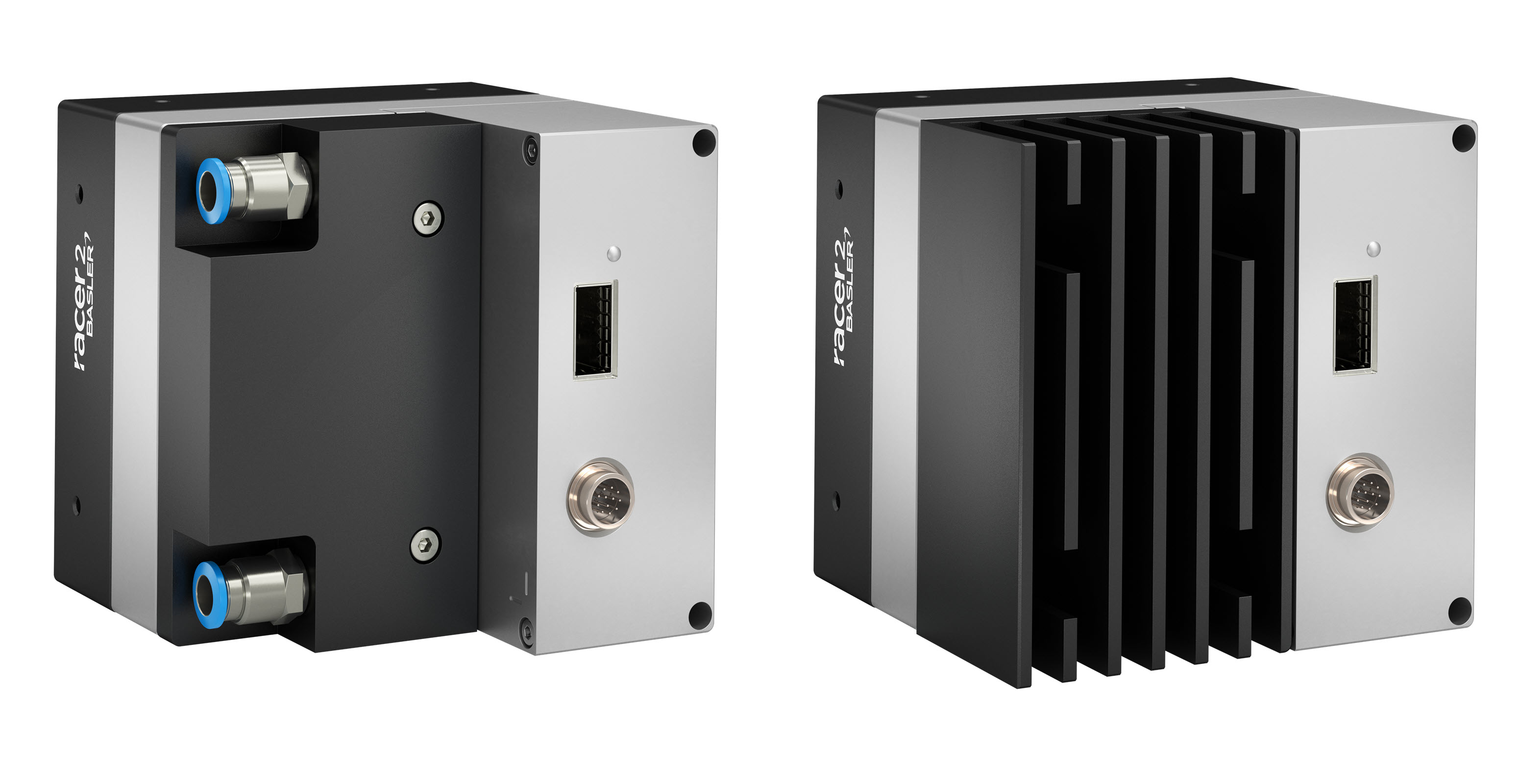

Cooling Devices for Basler racer 2 XL Cameras Mounted on Cameras

情報

  • To ensure proper camera operation Basler strongly recommends installing a cooling device.
  • The maximum operating temperature is specified in the "Environmental Requirements" section of your camera model topic.

Fin Heat Sink#

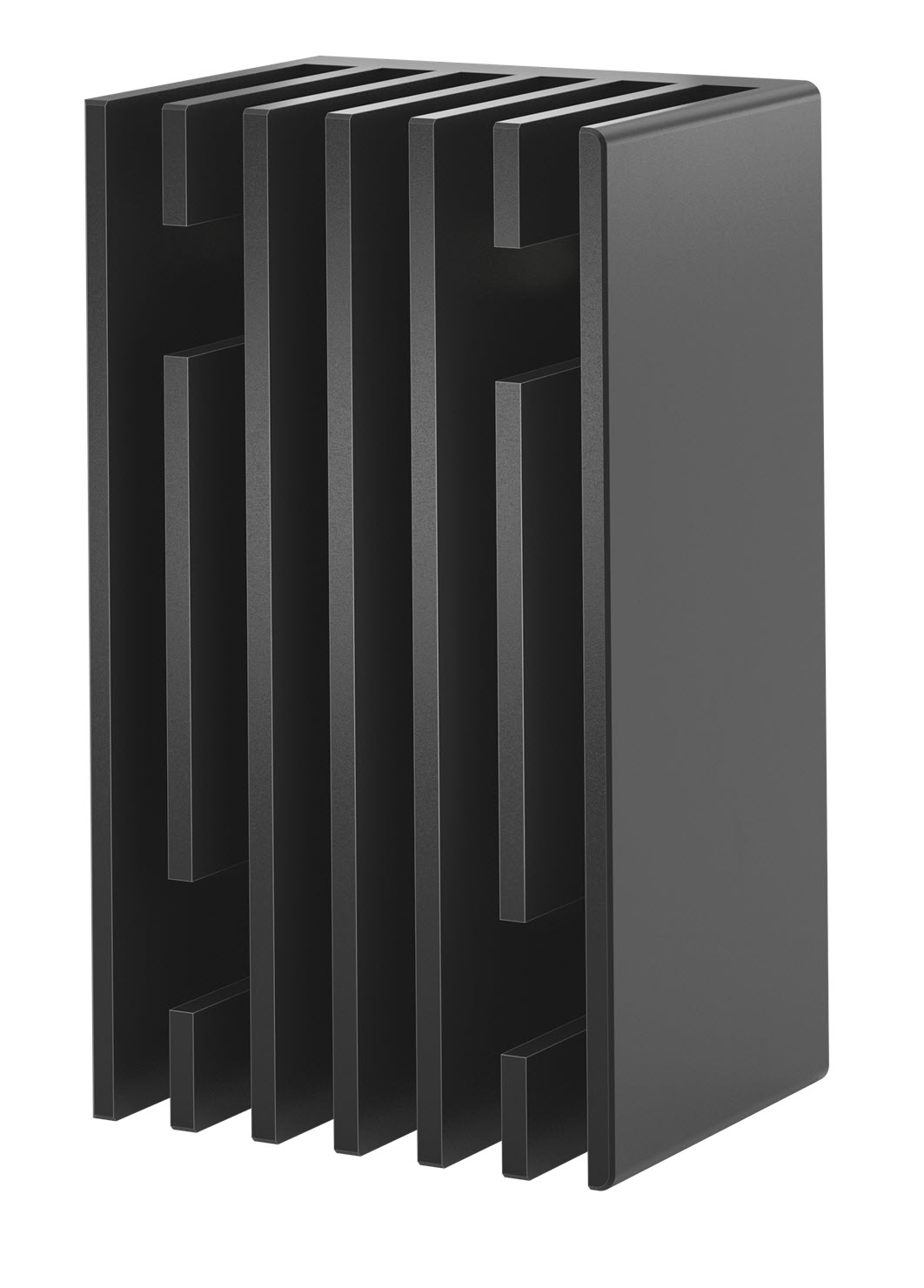

Fin Heat Sink for Basler racer 2 XL Cameras

  • Order number: 2200002875
  • The fin heat sink is delivered with a heat conducting mat and four screws for attaching the heat sink to the camera.

技術図面#

Basler racer 2 XL Fin Heat Sink Dimensions

物理的仕様#
寸法 See technical drawing above
材料 黒色陽極処理アルミニウム
ネジ M4 × 12mm、A2

概要#
保証 3年

Compressed Air Cooler#

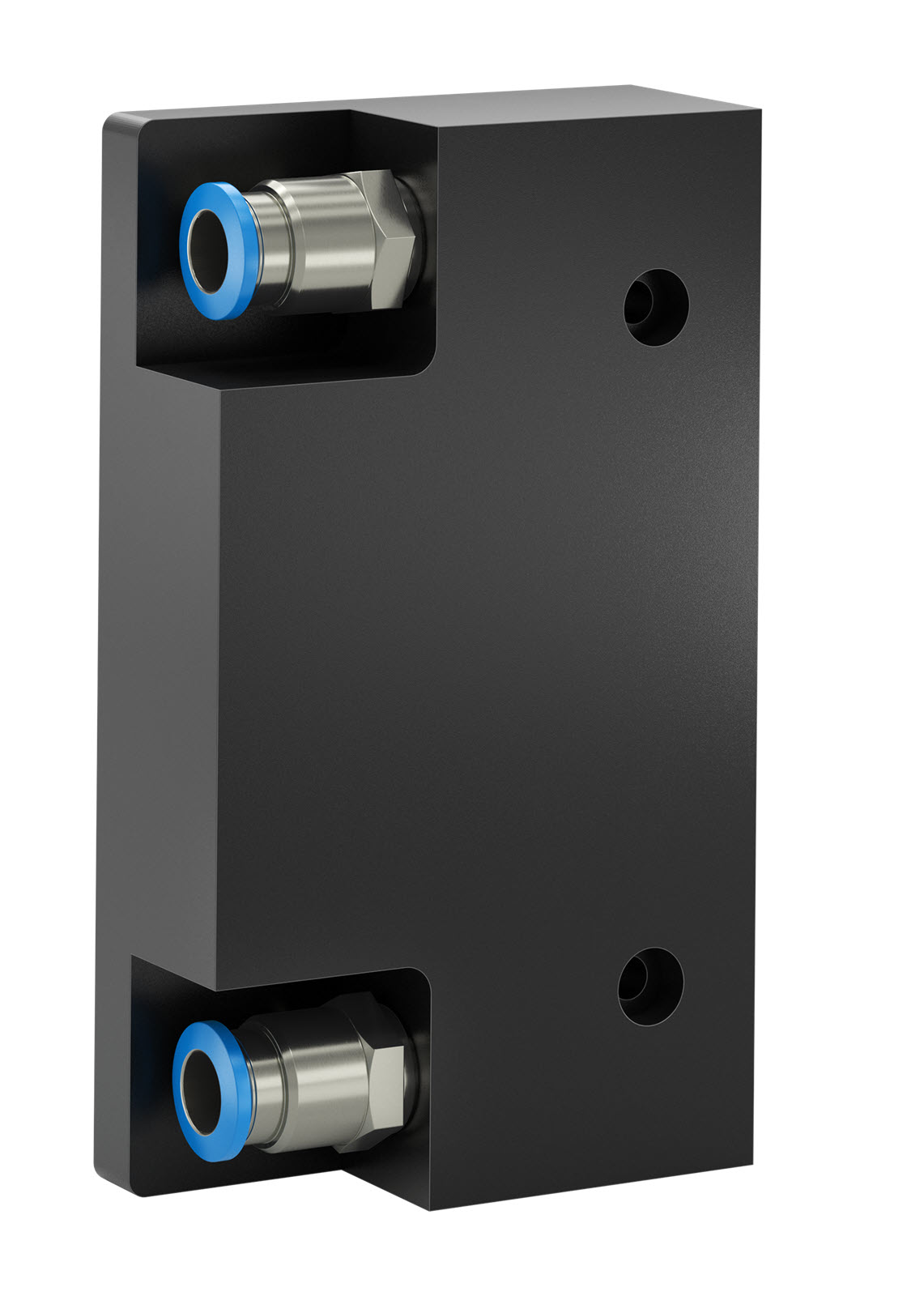

Compressed Air Cooler for Basler racer 2 XL Cameras

  • Order number: 2200002876
  • The compressed air cooler is delivered with a heat conducting mat and four screws for attaching the cooler to the camera.

技術図面#

Basler racer 2 XL Compressed Air Cooler Dimensions

物理的仕様#
寸法 See technical drawing above
材料 黒色陽極処理アルミニウム
Max. Operating Pressure 4 bar
インターフェース 4 pneumatic plug-in connectors (2 straight, 2 angled) for compressed air hoses (Ø8 mm)
2 connection threads, G 1/8"
ネジ M4 × 30 mm, A2

概要#
保証 3年

For more information about your camera, installation, and providing heat dissipation, read the topic about your Basler racer 2 XL camera model as well as the Hardware Installation and the Providing Heat Dissipation topics.
