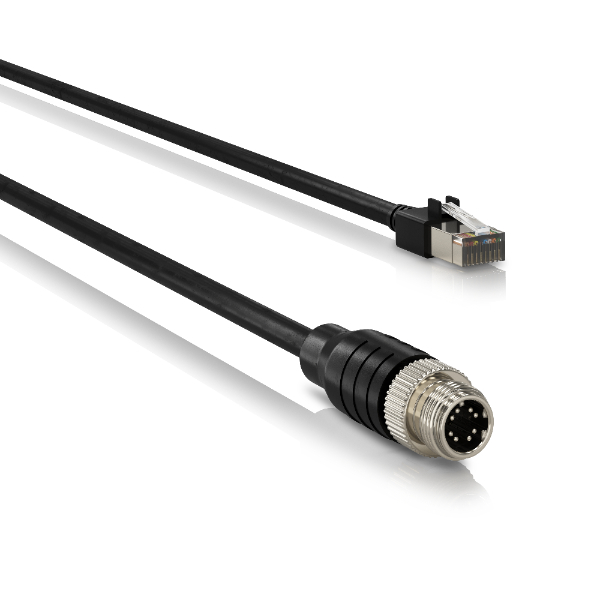

Basler Cable GigE, Cat 6, M12/RJ45, DrC#

GigE cable for data transmission with M12 X-coded 8P male connector on the camera side. The cable has an RJ45 connector on the host side and is suitable for drag chain applications.

Basler Cable GigE, Cat 6, M12/RJ45, DrC

情報

The cable is suitable for the following GigE camera models: ace 2 IP67

注文番号 ケーブル長
2200002422 5 m
2200002423 10 m
2200002424 15 m
2200002425 20 m
2200002426 25 m

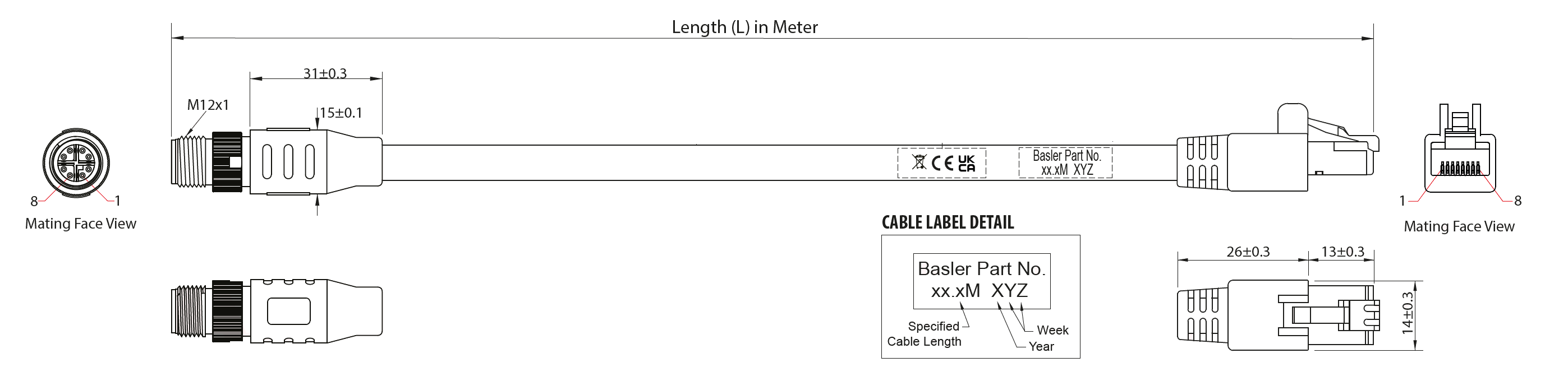

ケーブル図面#

ケーブル図面

物理的仕様#

2200002422 / 2200002423 / 2200002424 / 2200002425 / 2200002426
カメラ側コネクター M12 X-coded 8P male connector
ホスト側コネクター RJ45 male connector
ケーブル直径 6.6 ± 0.2 mm max.
最小曲げ半径 40 mm, fixed installation
60 mm, drag chain installation
最大曲げサイクル 1 mio. cycles
ドラッグチェーン用途に最適 はい
ロボティクス用途に最適 いいえ

概要#

2200002422 / 2200002423 / 2200002424 / 2200002425 / 2200002426
適合性 CE(RoHSを含む)
お使いのケーブルの証明書
詳細については、Baslerウェブサイトの「Compliance」セクションを参照してください。
保証 3年

ドラッグチェーン用途に対する適性#

このシリーズのすべてのケーブルは、ドラッグチェーン用途での使用について試験され、適していることが宣言されています。試験条件については、下図を参照してください。ケーブルは、100万回の曲げに対して保証されています。

情報

The bending radius influences the number of bending cycles.
A bending radius larger than the one used during testing, leads to an increase in the number of bending cycles. A smaller bending radius has the opposite effect and results in a significantly lower number of bending cycles.

ドラッグチェーン適合性試験条件

Read the topic about your camera model before connecting the cable to the camera. You can find your camera topic in the Area and Line Scan Cameras section under "Models".

Basler製品ドキュメントに記載されていないカメラについては、Basler Webサイトの「ドキュメントのダウンロード」セクションを参照してください。
