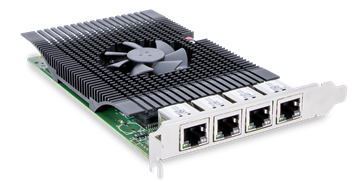

Basler 10GigE Interface Card, 4-CH#
情報
写真は実際の製品の外観とはやや異なる場合があります。
情報
- On Windows, to operate this interface card, use the correct Marvell driver for the AQC113 chipset. The Marvell AQtion 64-bit driver is available within the pylon installation in the \Development\Redist\Drivers directory. Alternatively, you can also download the latest driver from the product page of the 10GigE Interface Card, 4-CH, under Specifications / Software, or from the Marvell website.
- Linuxでは、インターフェースカードは通常Linuxカーネルでネイティブにサポートされています。
主な機能#
- Validated for GigE Vision
- オートネゴシエーション
- IEEE 1588 Precision Time Protocol (PTP)
- Use of Basler-assigned MAC address range for simplified identification
一般仕様#
| 10GigE Interface Card, 4-CH | |
|---|---|
| 注文番号 | 2200002432 |
| Ethernet Controller | Marvell AQC113 |
| Number of Ports/Channels | 4 |
| ポート | RJ45 |
| Data Rate | 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps / 10 Mbps |
| 追加のロープロファイルブラケット | いいえ |
| PCIeのバージョンとレーン | 3.0 x8 (compatible with x16) |
| サポートされている規格 | IEEE 802.3an (10 Gbit/s Ethernet over unshielded twisted pair) IEEE 802.1ax (Link Aggregation) IEEE 802.3 IEEE 802.3ab (1000BASE-T Gigabit Ethernet) IEEE 802.3u (100BASE-TX Fast Ethernet) IEEE 1588 (Precision Time Protocol (PTP)) IEEE 802.3bz (2.5GBASE-T and 5GBASE-T) IEEE 802.1Q (VLAN) |
| Additional Functions | IEEE 1588 Precision Time Protocol (PTP) |
| Power Supply | PCIe |
| 適合性 | CE, FCC, RoHS Certificates for your 10GigE Interface Card For more information, see the Compliance section of the Basler website. |
| 消費電力 | 1.2–19.38 W |
| ジャンボフレームの 最大パケットサイズ | Up to 16348 bytes |
ジャンボフレーム
If you want to use the maximum packet size for jumbo frames, set the network adapter to its maximum value as described in the ネットワークの設定（GigEカメラ） topic. Also set the GevSCPSPacketSize parameter to its maximum size. Bear in mind that most Basler ace 2 cameras only support a packet size of up to 8192 bytes. Basler ace 2 5GigE and Basler racer 2 S 5GigE cameras, however, support a packet size of up to 16332 bytes.
LEDステータス#
| LED | State at 10 Gbps | State at 10 Mbps/100 Mbps/ 1 Gbps/2.5 Gbps/5 Gbps |
|---|---|---|
| リンクLED | 緑点灯 | オレンジ色点灯 |
| ネットワークLED | 緑に点滅 | 緑に点滅 |
{.large-image}
GigEインターフェースカードの寸法#
環境要件#
The Basler 10GigE Interface Cards are specified for indoor use only.
| 動作温度 | 0～50°C（32～122°F） |
| 保管温度 | -40–85 °C (-40–185 °F) |
| 湿度 | Maximum 90 % relative humidity, non-condensing (specified at 35 °C/95 °F) |
Allow sufficient air circulation to keep the temperature during operation below 50 °C (122 °F). Additional cooling devices are not normally required, but should be provided if necessary.
